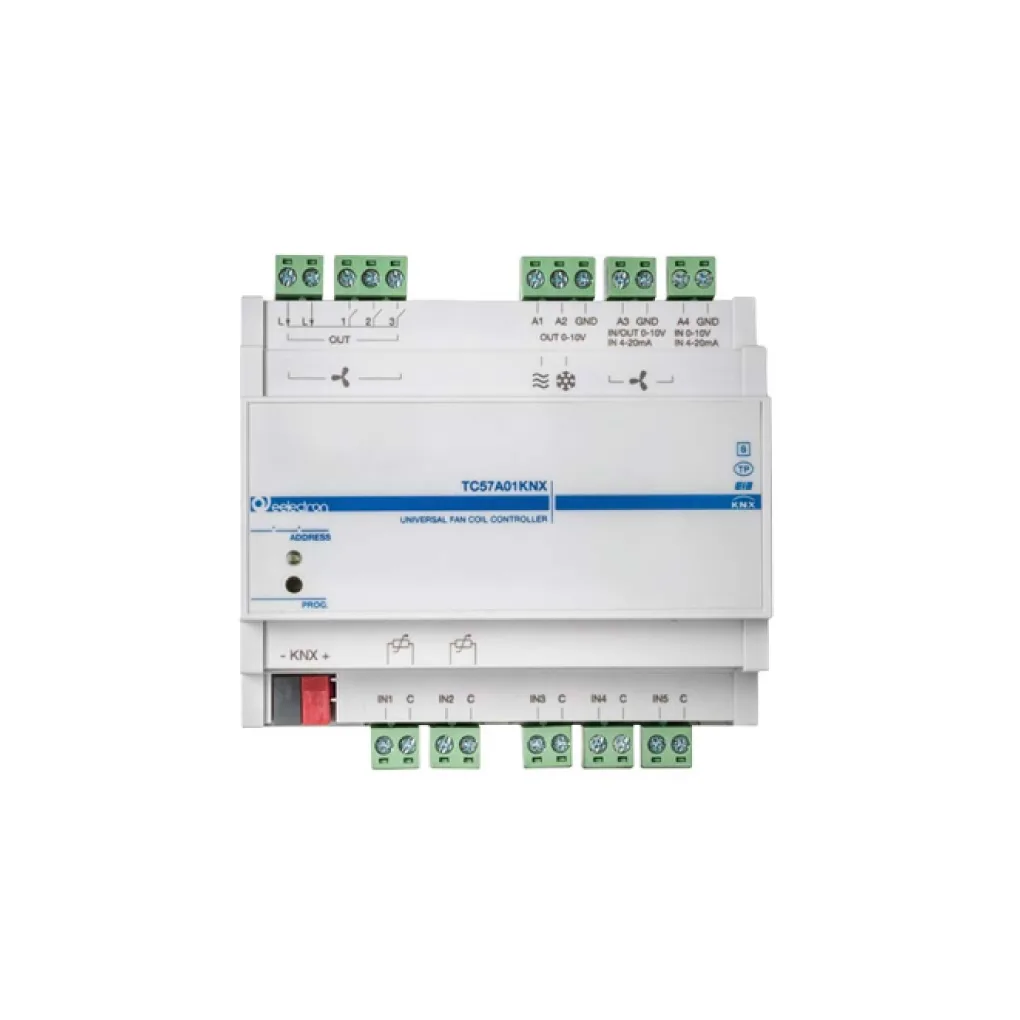

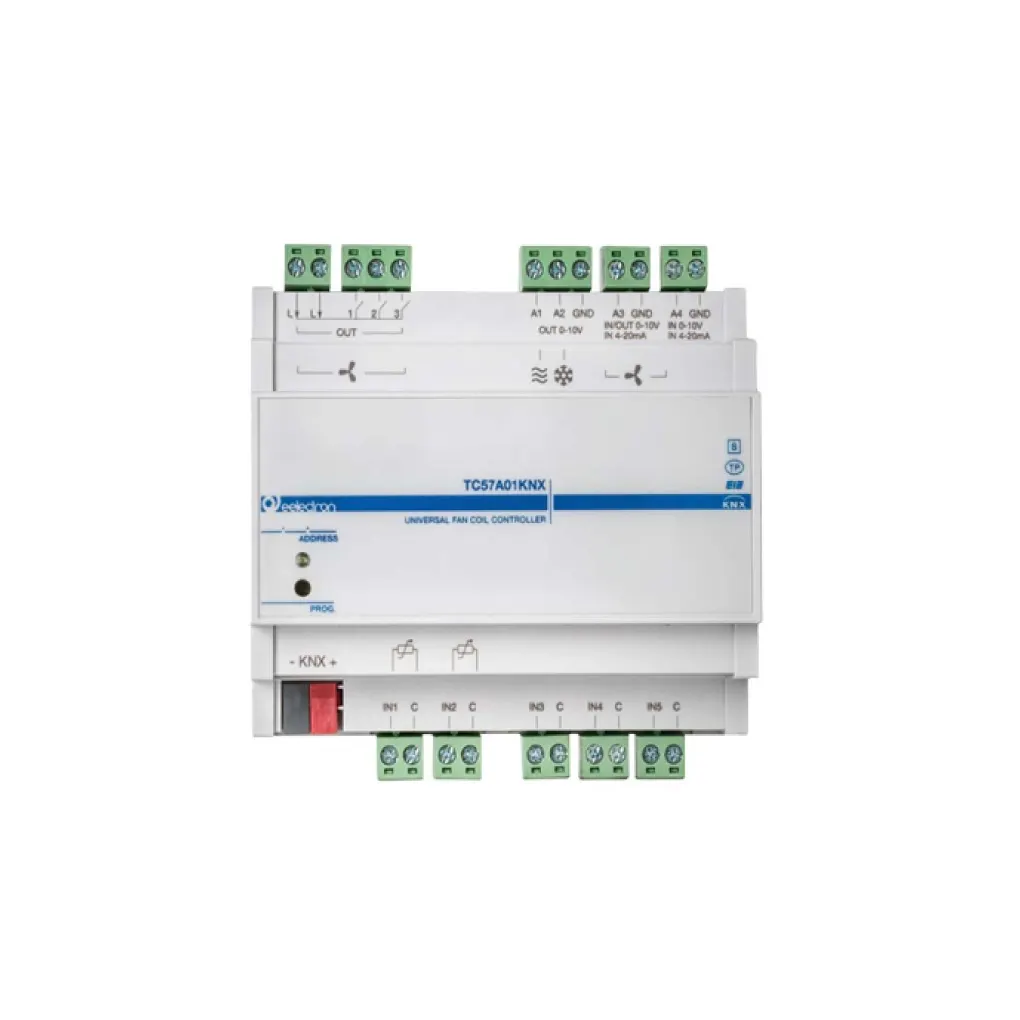

Universal Fancoil Controller 0-10 V | 5 In - 4 Out

DIN‑rail KNX actuator designed for fan‑coil units (2‑pipe/4‑pipe) Provides 4 × 0‑10 V outputs plus 3 × 16 A relays. Two 0‑10 V outputs for proportional valves; third 0‑10 V or relays for fan speed control 3rd/4th 0‑10 V outputs can act as analog sensor inputs Built‑in logic algorithm (2‑stage PI) for independent regulation of valves and fan speed Includes 5 digital dry‑contact inputs; 2 inputs support NTC temperature probes. 2‑stage PI control for independent valve and fan speed regulation.

Key Features

DIN‑rail KNX actuator designed for fan‑coil units (2‑pipe/4‑pipe)
Built‑in logic algorithm (2‑stage PI) for independent regulation of valves and fan speed
Includes 5 digital dry‑contact inputs; 2 inputs support NTC temperature probes.
2‑stage PI control for independent valve and fan speed regulation.

Specifications

Provides 4 × 0‑10 V outputs plus 3 × 16 A relays.

Two 0‑10 V outputs for proportional valves; third 0‑10 V or relays for fan speed control

3rd/4th 0‑10 V outputs can act as analog sensor inputs

Confirm the exact model, interfaces and installation requirements against current product documentation before specification.
