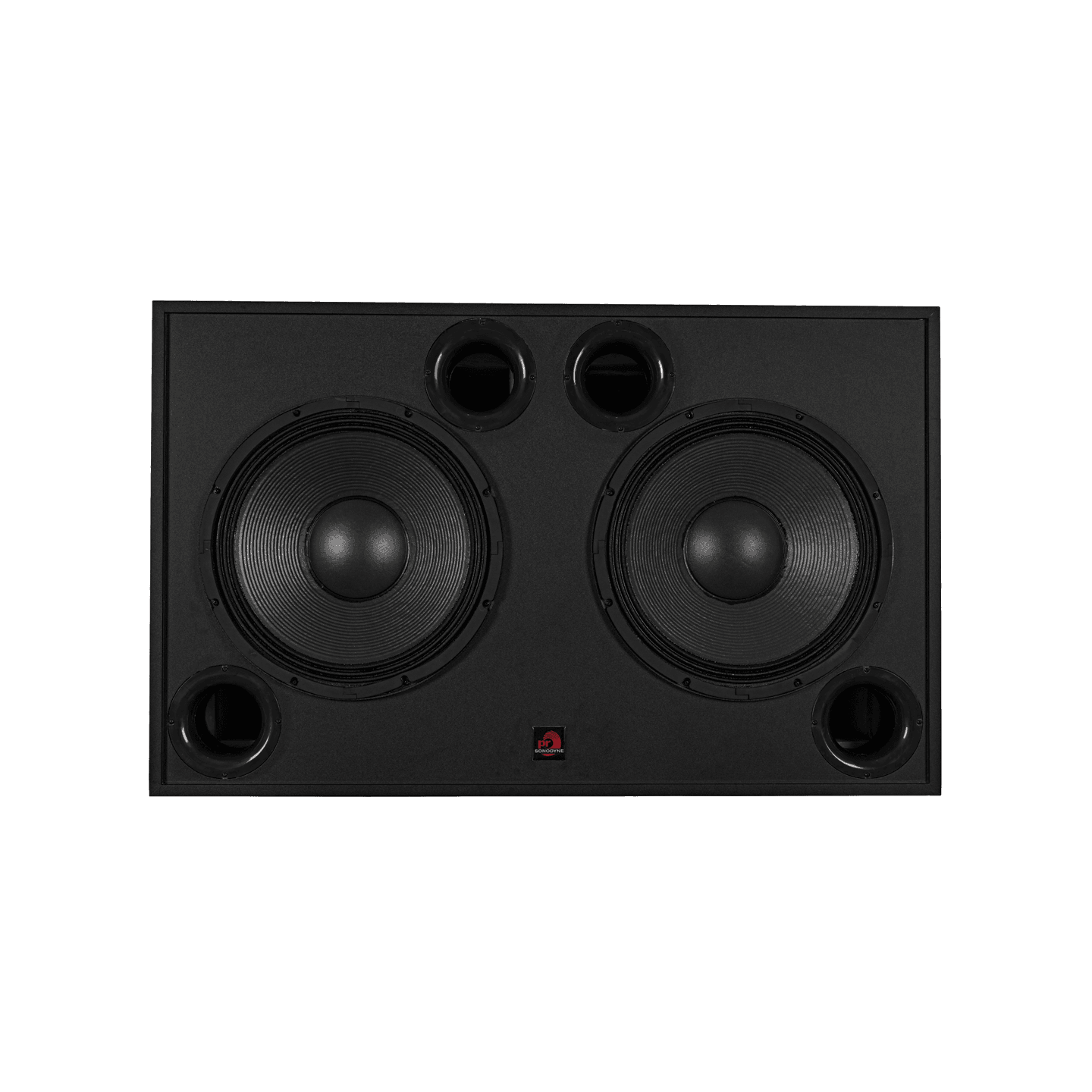

Sonodyne CS 2202
Sonodyne

Sonodyne CS 2202

Home Cinema Audio Subwoofers

With a channel dedicated to it, the subwoofer is a critical sonic element in the cinema soundstage. Digital formats demand dynamic ultra-low frequency response. With high excursion transducers mounted in sturdy cabinets the 2200 Series models are up to the task. The 4” voice coils transducers are subjected to extreme power tests in real world conditions to ensure that they can continuously reproduce the lowest octaves without fault or fatigue. In case of receipt of damaged or defective items please report the same to our website support team by emailing at response@sonodyne.com or calling 1 800 31 31 035 to obtain a Replacement Merchandise Authorisation (RMA) number.. The request will, however, be entertained once a Sonodyne team member has checked and determined the same at his own end. Customer is not happy with the look/sound quality of a defect free product. Available in Dubai and across the UAE / GCC through LEXA Lifestyle — Sonodyne's exclusive Middle East distributor for supply, installation and calibration.

Key Features

  • High excursion subwoofer drivers enable reproduction of the lowest frequencies at high SPL with minimum distortion.
  • Large flared ports reduce power compression and wind noise to insignificant levels.
  • Heavily braced cabinet eliminates cabinet vibrations at bass frequencies ensuring distortion-free, uncoloured sound.
  • Custom design of the driver motor structure ensures continuous operation at high SPL.
  • ZAKIR HUSSAIN
  • Sonic superiority
  • Akash Banerjee (DeshBhakt)
  • MONDO DR

Technical Specifications

Spec Sheet (PDF)
Specifications
DESCRIPTIONCinema subwoofer
ENCLOSURE TYPEVented
ENCLOSURE MATERIALBaffle - 25mm PPB sides and back, 19mm PPB. Extensive bracing
TRANSDUCER COMPLEMENTS2 x 18" subwoofer, 4" voice coil
NOMINAL IMPEDANCE4Ω
CONTINUOUS POWER HANDLING1600W
PROGRAM POWER3200W
PEAK POWER6400W
SENSITIVITY (1 W 1M)101dB
MAX CONTINUOUS SPL133dB
MAX PEAK SPL139dB
FREQUENCY RANGE (- 3dB)35Hz
FREQUENCY RANGE (-10dB)25Hz
RECOMMENDED CROSSOVER FREQUENCY80Hz ~ 150Hz, High pass, 12dB/octave
RECOMMENDED SUBSONIC FILTER20Hz 24dB/octave High pass
INPUT CONNECTORColour coded binding post
FINISHBlack PVC
PRODUCT DIMENSIONS HxWxD765mm x 1220mm x 610mm
SHIPPING DIMENSIONS892mm x 1370mm x 740mm
NET WEIGHT102kg
GROSS WEIGHT107kg
