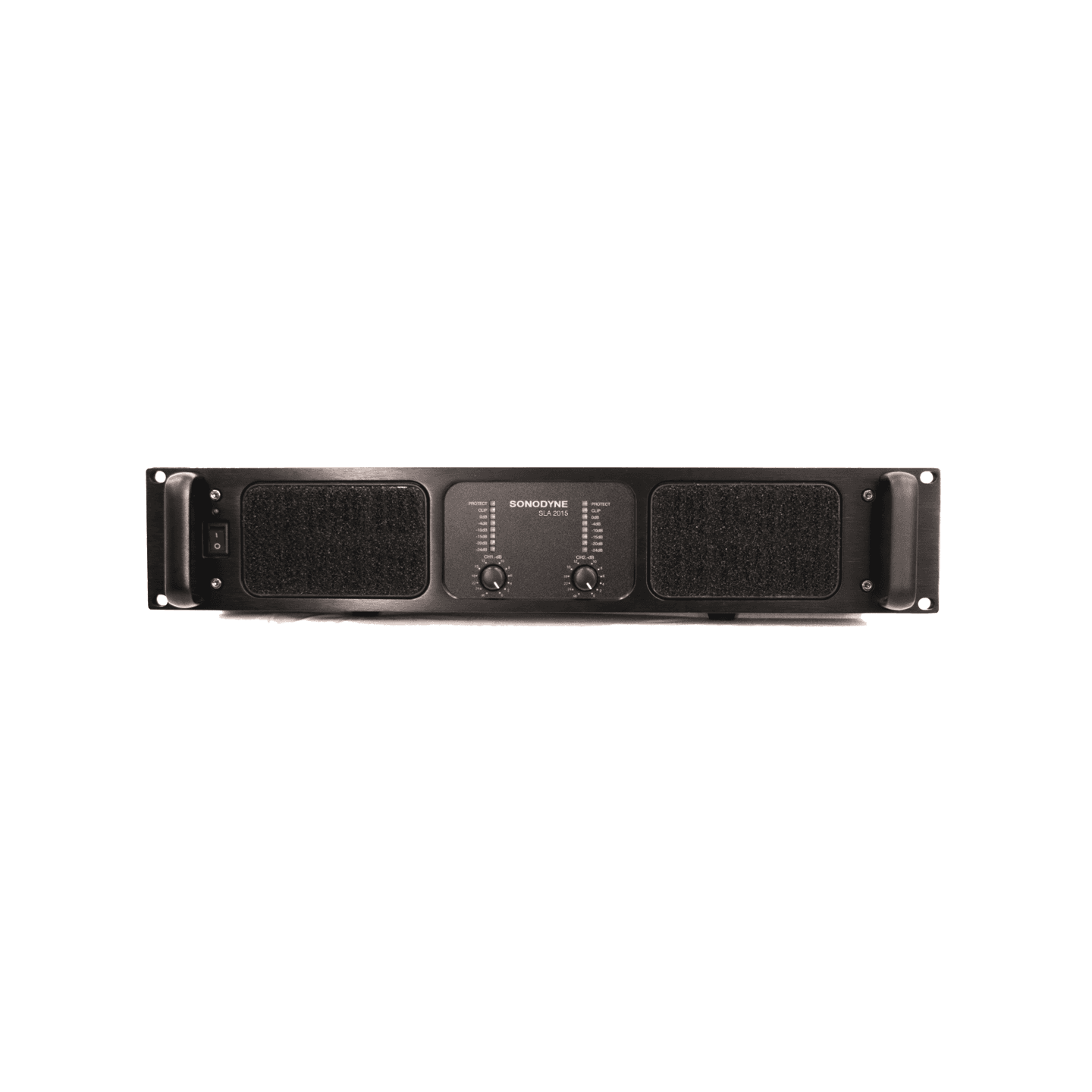

Sonodyne SLA 2015
Install Audio Power Amplifiers
SLA 2015 is a 2 channel, Class H amplifier that delivers 2250 watt / channel at 4 Ohm. Detailed specifications are given below
Key Features
- 2Ω operation
- Soft start
- High SNR
- Low THD, IMD
- Heavy-duty power supply for high dynamic power
- Short-circuit, thermal, output DC, RF protection
- Variable-speed twin fan back-to-front cooling
- Neutrik Speakon® and binding post output connectors
- LED indicators for metering, status, and operating mode
Technical Specifications
Spec Sheet (PDF)Specifications
NO. OF CHANNELS2
OUTPUT POWER PER CHANNEL8Ω: 1500W 4Ω: 2250W 2Ω: 2550W 8Ω BRIDGED: 4500W 4Ω BRIDGED: 5550W
THD AT RATED POWER0.1% or less
DAMPING FACTOR>300
SIGNAL TO NOISE RATIO (20Hz ~ 20kHz)107dB
OUTPUT CIRCUITRYH
FREQUENCY RESPONSE20Hz~20kHz, ±0.5dB
INPUT CONNECTORS EACH CHANNELXLR with link
OUTPUT CONNECTORS EACH CHANNELSpeakon, 1/4" and binding post
AMPLIFIER AND LOAD PROTECTIONShort circuit, output DC, overheat, RF, internal fault, input overload, high frequency overload, mismatched load, mains inrush current
FRONT PANEL CONTROLS AND INDICATORSClip/Protect indicators, 6 step vol control indicator, 21 detent vol level control
REAR PANEL CONTROLS3 DIP switches for stereo, parallel, bridge mode. 2 DIP switches for 0.775V and 1V Sensitivity
INPUT POWER (as per BIS IS616:2017 IEC60065:2014/IEC62368-1600W
DIMENSIONS (WxHxD) mm483 x 457 x 88
NET WEIGHT17kg
AGENCY APPROVALSCE, BIS (IS616:2010)
