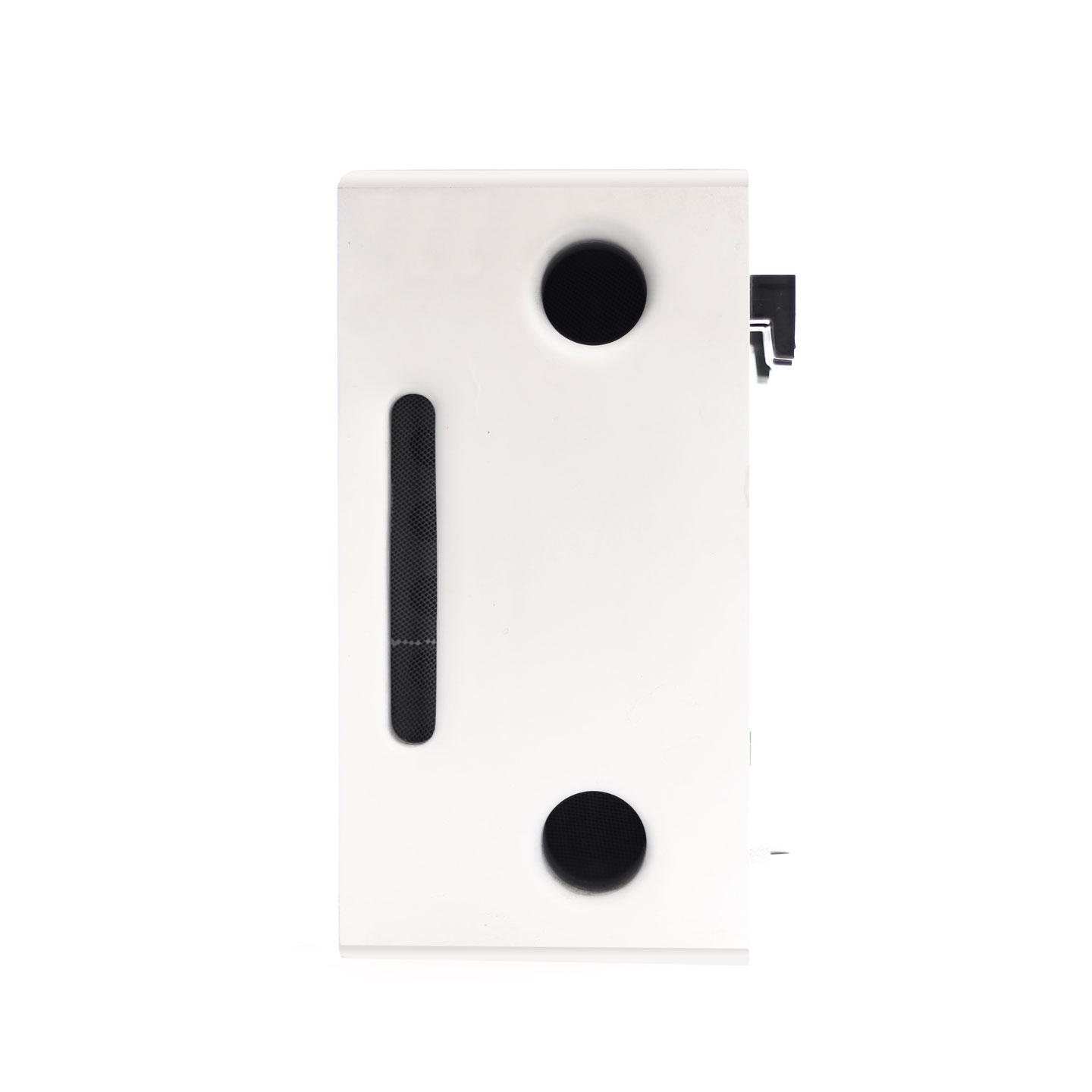

Sonodyne SSW 2010
Sonodyne

Sonodyne SSW 2010

Install Audio Subwoofers

The SSW 2010 is a high perfromance on wall subwoofer with operations in both mono and stereo mode. With inbuilt HPF, it can be operated in 100 volt or 4 Ohm mode. In case of receipt of damaged or defective items please report the same to our website support team by emailing at response@sonodyne.com or calling 1 800 31 31 035 to obtain a Replacement Merchandise Authorisation (RMA) number.. The request will, however, be entertained once a Sonodyne team member has checked and determined the same at his own end. Customer is not happy with the look/sound quality of a defect free product. Available in Dubai and across the UAE / GCC through LEXA Lifestyle — Sonodyne's exclusive Middle East distributor for supply, installation and calibration.

Key Features

  • Wall mounted subwoofer
  • In-built crossover for high pass to satellite speakers
  • Both stereo and mono modes
  • Both direct and LMT modes
  • Smooth, articulated response
  • Transducer with dual voice coil
  • ZAKIR HUSSAIN
  • Sonic superiority

Technical Specifications

Spec Sheet (PDF)
Specifications
DESIGNSide firing subwoofer, vented
ENCLOSUREMDF
TRANSDUCER COMPLEMENTS1 x 6" dual voice-coil subwoofer
FREQUENCY RANGE (-10dB)45Hz ~ 200Hz
FREQUENCY RESPONSE (-3dB)50Hz ~ 200Hz
SENSITIVITY (1W 1M)88dB (half space)
SPL @ RATED POWER105dB @ 60W
IMPEDANCE, DIRECT INPUT4 Ohm + 4 Ohm (stereo), 8 Ohm (mono)
AMPLIFIER POWER, DIRECT INPUT100W + 100W
POWER TAPS 70V7.5W, 15W, 30W
POWER TAPS 100V15W, 30W, 60W
IMPEDANCE 70V653, 327, 163 Ohm
IMPEDANCE 100V666, 333, 167 Ohm
DIMENSIONS (H x W x D)350mm x 450mm x 180mm
COLOURWhite/ Black
MOUNTSWall-mounting brackets
NET WEIGHT12.2kg
GROSS WEIGHT14.7kg
