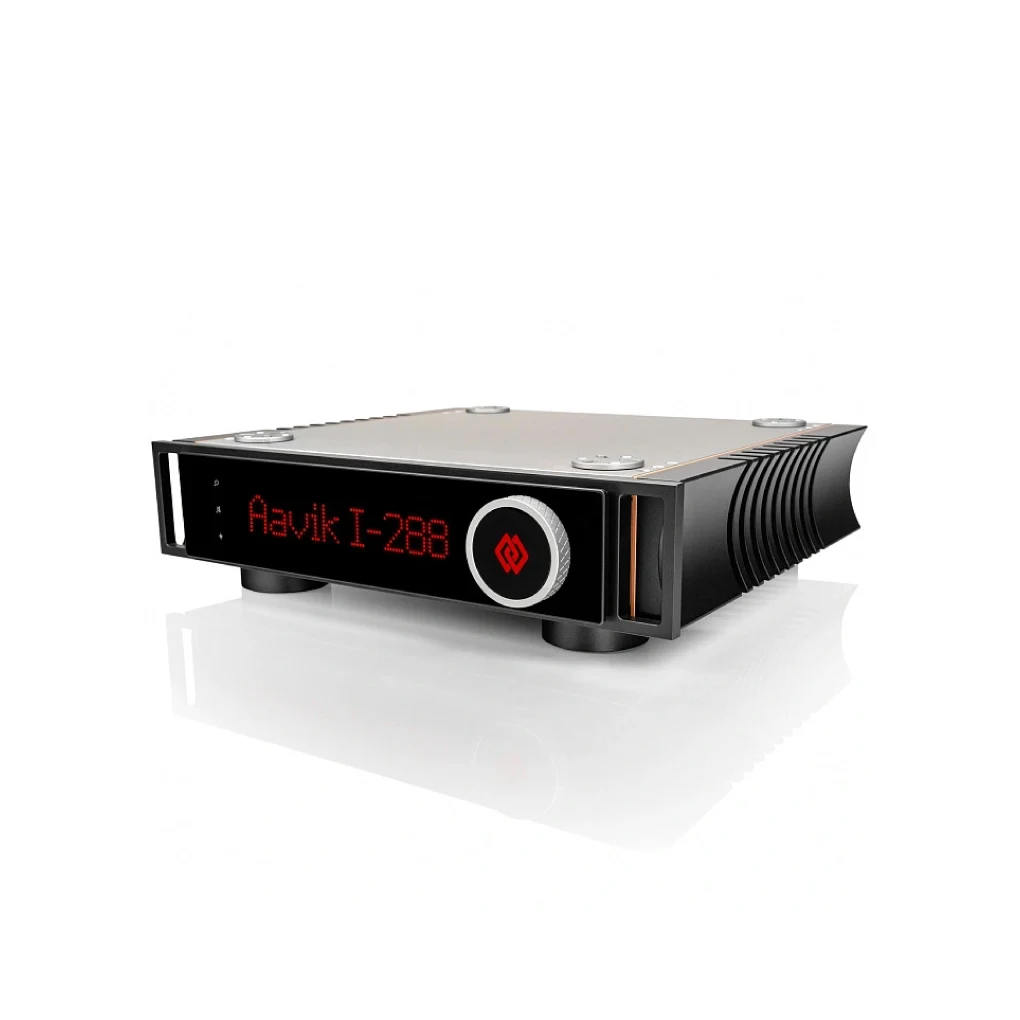

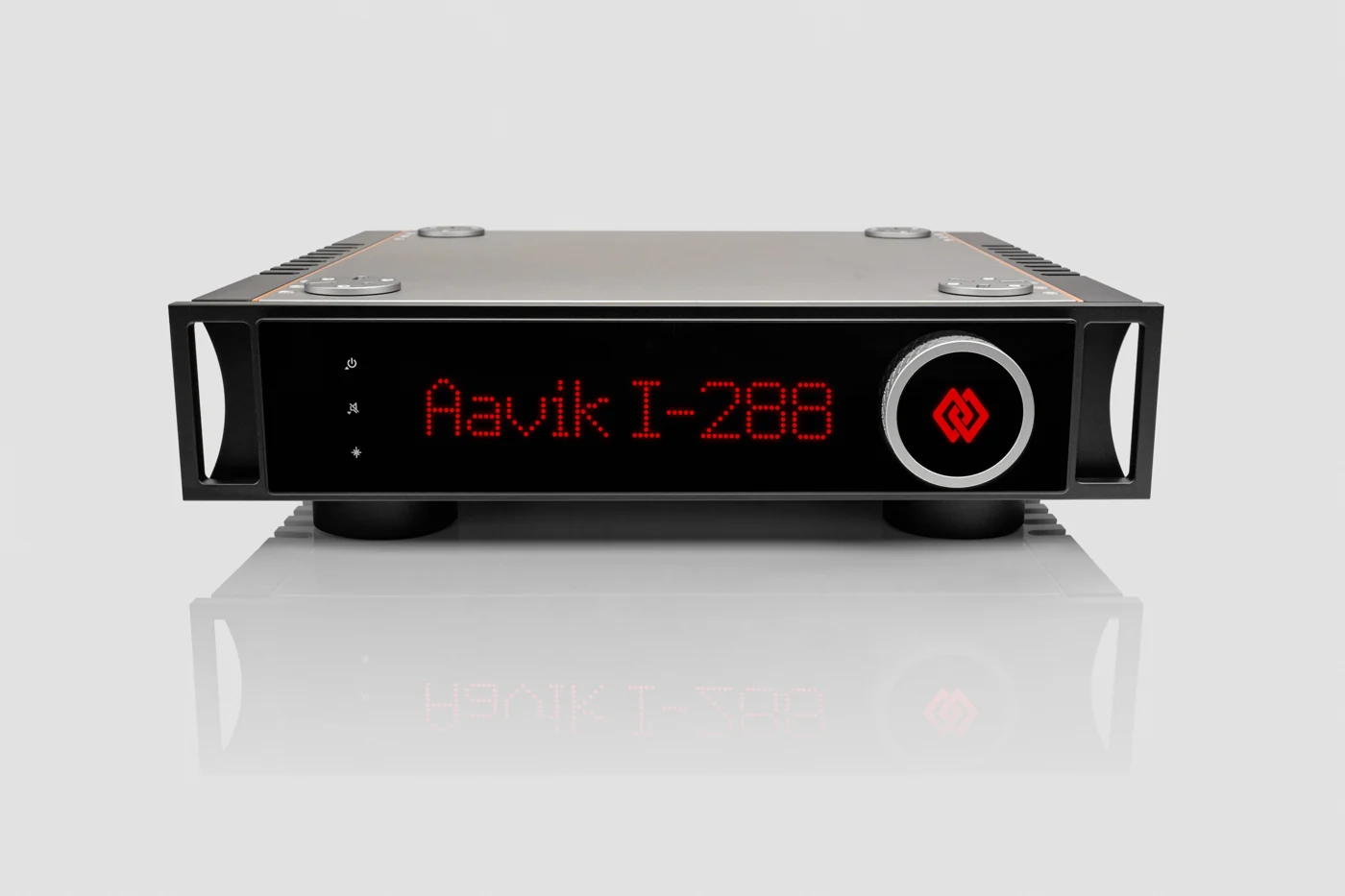

Aavik I-288

Audio Aavik I Series

I-288 is an integrated amplifier in Aavik’s I-x88 series. It combines analogue source control and Class D amplification with an active analogue crossover for system integration.

Technical Specifications

Manufacturer specifications

Line InputMaximum input 4.5V RMS (Line 1-4) Maximum input 6.5V RMS (Line 5) Input impedance 10kohm

Preamp Output1 pair of RCA outputs

Max Output7,5Vrms

Distortion LineSTAGE: 0,005% (THD at 1kHz, 1V input)

Output Impedance50 ohms

Volumecontrol76 1dB steps

Speaker Output2 x 300W 8 ohm 2 x 600W 4 ohm

Distortion (Thd+N)0,0028% (1W, 1kHz, 8 ohm)

Imd0,0008% (10W, 8 ohm)

Tim0,002% (10W, 8 ohm)

Main In1.33V RMS in for full power Input impedance 3.4kohm

Input Voltage100-240 V

Max Current10 A

Dimensions440 x 393,5 x 117,8mm (WxDxH)

Weight23,3kg

Confirm the exact model, interfaces and installation requirements against current product documentation before specification.
