Russound

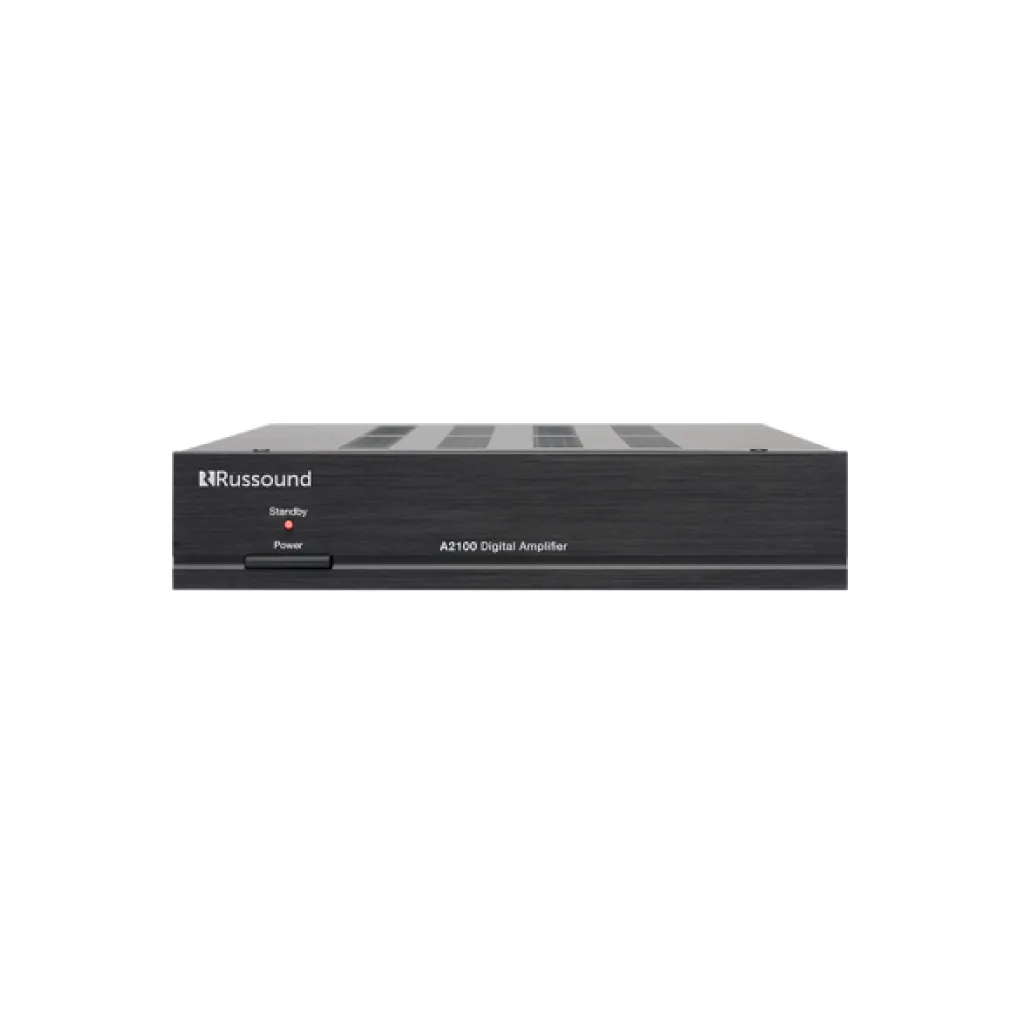

A2100 Half-Rack Digital 2-Channel Amplifier
Russound A2100 is a two-channel Class D amplifier in a half-rack enclosure. It provides 100 W per channel into 8 ohms, with a bridgeable 225 W output into 8 ohms. Trigger input/output, audio sensing and a buffered line output support system integration.
Key Features
- Half-rack format
- 12 V trigger input and output
- Audio-sensing input
- Buffered line output
- Included rack-mount ears
Technical Specifications
Spec Sheet (PDF)Amplifier
Channels2, Class D
Output at 8 ohms100 W/channel, <0.1% THD+N
Output at 4 ohms125 W/channel, <0.5% THD+N
Bridged output at 8 ohms225 W, <0.2% THD+N
Frequency response18 Hz–25 kHz (±1 dB) at 8 ohms
Input sensitivity500 mV
Power supply100–240 VAC, 50/60 Hz
Standby power<0.5 W
Dimensions (W × D × H)21.59 × 26.67 × 4.45 cm
Minimum loudspeaker impedance: 4 ohms in stereo mode, 8 ohms in bridged mode. Do not apply the stereo minimum to a bridged installation.
Russound specifies the A2100i international version for use outside the USA, with UK, Euro and Australian power cords. Confirm the supplied regional version and follow the installation manual.
