Nakymatone Laag

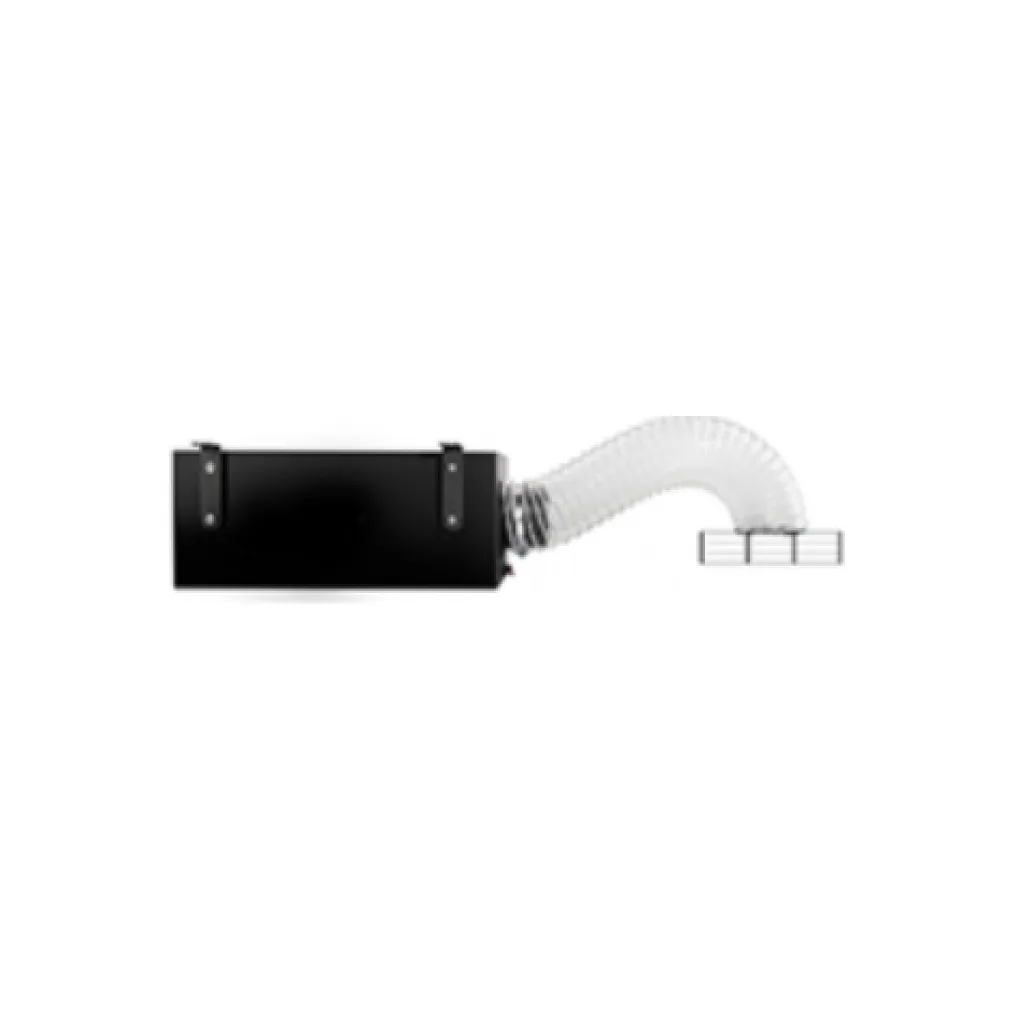

Laag is a concealed subwoofer that connects to a room vent through a tube. Its hidden enclosure still requires a vent opening; the manufacturer lists a 40–117 Hz frequency response.

Technical Specifications

Spec Sheet (PDF)

Acoustic Performance

Frequency Response40 Hz – 117 Hz

ApplicationHidden with Port into Space

Port FinishAdapts to custom vents (ships with tube connection to standard vent)

Sensitivity87 dB @ 2.83 V / 1 m

Electrical

Driver8" European High Performance Driver

Nominal Impedance8 Ω (minimum 8 Ω)

Power Handling175 W RMS (Peak 200 W)

Connection TypeSpeaker posts, accepts 24–12 AWG

Physical

ConstructionMDF with rubber tube and rubber isolation

Operating Temperature-15°C to 50°C

Installation

Grill5" × 5" fine grill, fully flush mud to frameless

Mounting OptionsCeiling joist, floor joist, deep wall cavity, cabinet

Confirm the exact model, regional version and connected equipment before specification. Published manufacturer information does not establish local stock or dealer authorisation.

Confirm enclosure clearance, mounting, finish or vent requirements from the exact installation document. Do not cut walls or cabinetry using another model’s dimensions.
