Lifesmart
LifeSmart Nature 7 PRO
Automation Control Panels

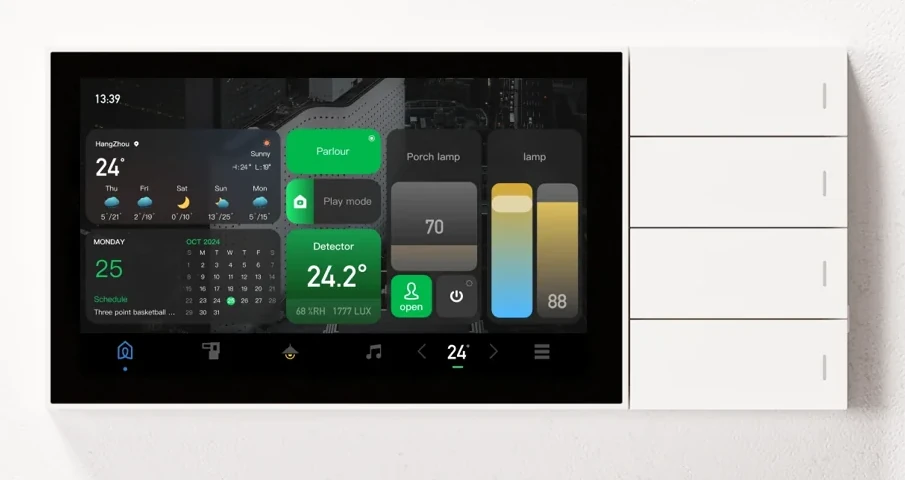

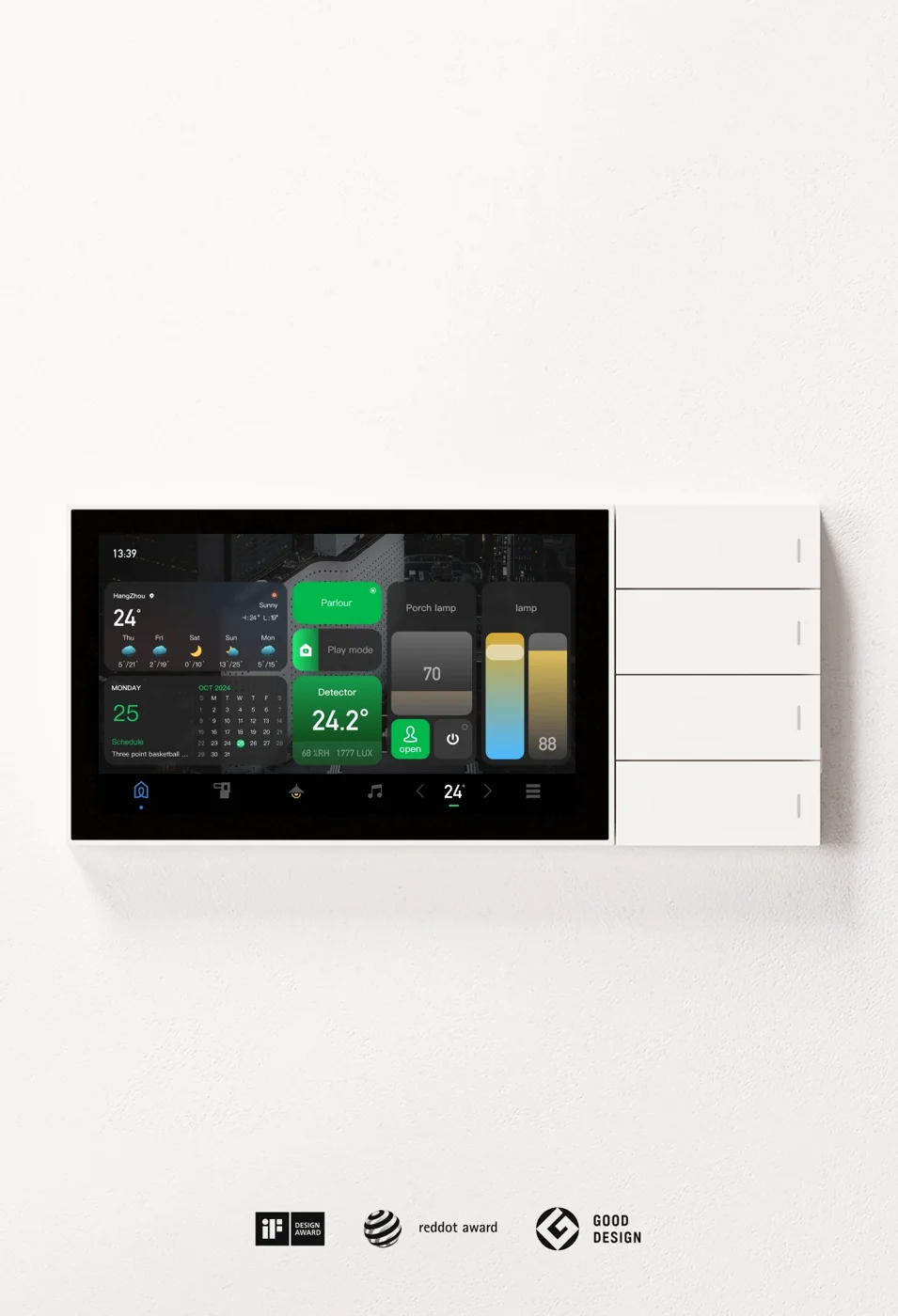

Nature 7 PRO is a seven-inch in-wall control panel with a 1024 × 600 IPS touchscreen, physical scene buttons and network connectivity. Its documented power options are DC 12 V or 48 V PoE.
Technical Specifications
Manufacturer specifications
DimensionsExposed dimension: 249*113*16mm, Whole dimension: 249*113*28.6mm
Weight525g
InstallationIn-wall concealed with pre-embedded box (standard)
Operating Temperature-5~45℃
Operating Humidity5~90％
Power SupplyDC 12V/PoE 48V
InterfaceRJ45×1, Extension (1+8way sense, RS485)
ButtonCustomizable scene-switch button×4, Power button
Screen7 inch touch screen
Resolution1024×600 (IPS)
CPU4 Core A55
RAM2GB
Oprating SystemAndroid 11
SpeakerYes
MicrophoneYes
NetworkWi-Fi 2.4GHz, LAN port, Zigbee, CoSS
Confirm the exact model, regional version and connected equipment before specification. Published manufacturer information does not establish local stock or dealer authorisation.
