Nakymatone Naky

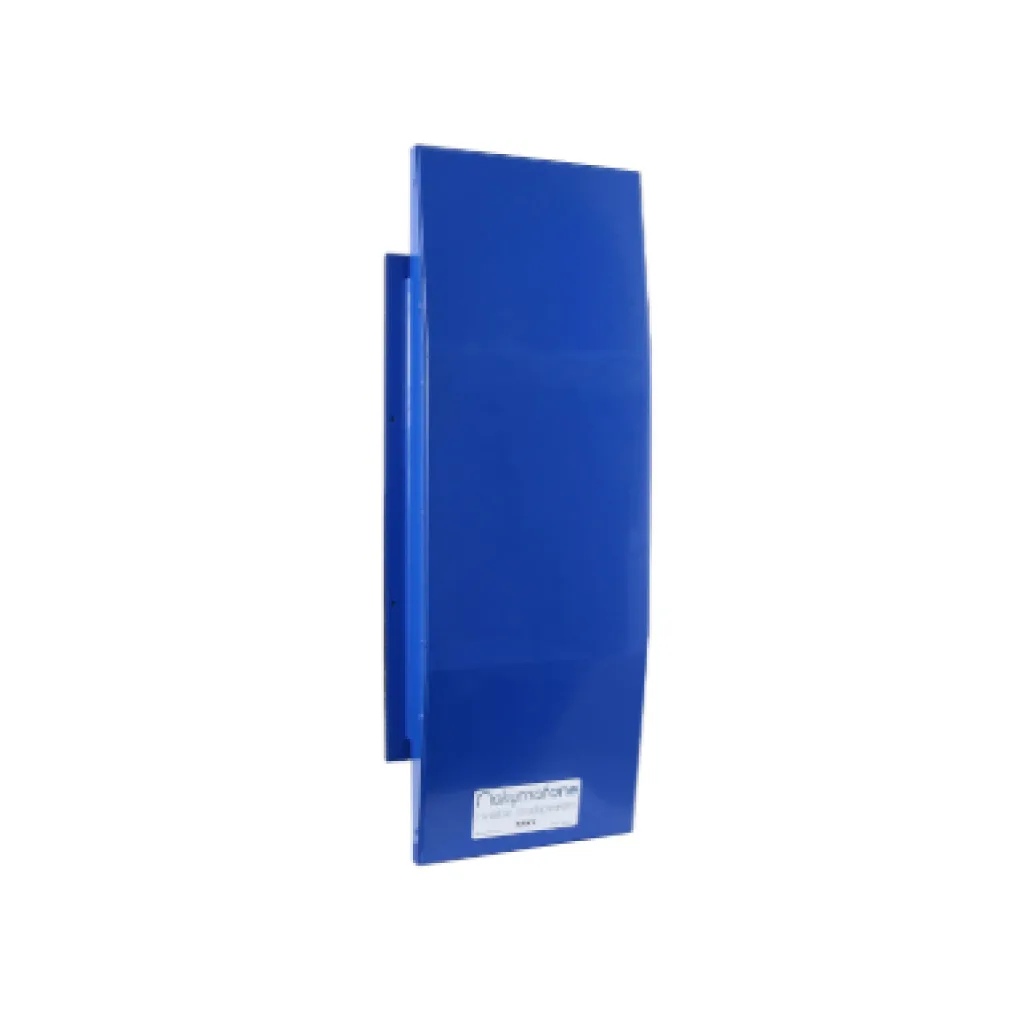

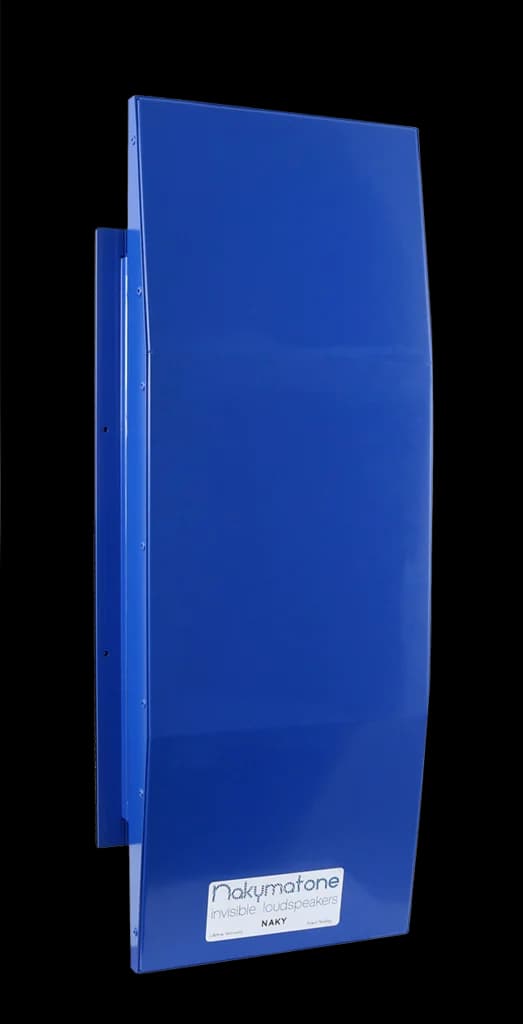

Naky is an invisible loudspeaker designed for concealment behind an approved wall or ceiling finish. The manufacturer lists a 95 Hz–20 kHz frequency response with 8-ohm nominal impedance; confirm exact finishing and mounting instructions.

Technical Specifications

Spec Sheet (PDF)

Acoustic Performance

Frequency Response95 Hz – 20 kHz (±3 dB)

Dispersion Angle180° × 180° (H × V)

Sensitivity86 dB @ 1 m / 1 W (with 2 mm plaster skim)

Electrical

Nominal Impedance8 Ω (minimum 8 Ω)

Power Handling40 W Maximum (overload protection built-in)

Filtering & ProtectionOverload protection and HPF built-in

Connection TypeCrimp, accepts 24–12 AWG

Physical

Weight2,650 g

ConstructionAluminum honeycomb core, doped paper skin, composite acoustic panel

EnclosureAcoustically tuned anodized aluminum enclosure

Operating Temperature-15°C to 50°C

Installation

Compatible AccessoriesPre Mount Kit, XStrap, XRing, XLocator

Confirm the exact model, regional version and connected equipment before specification. Published manufacturer information does not establish local stock or dealer authorisation.

Confirm enclosure clearance, mounting, finish or vent requirements from the exact installation document. Do not cut walls or cabinetry using another model’s dimensions.
