Aavik

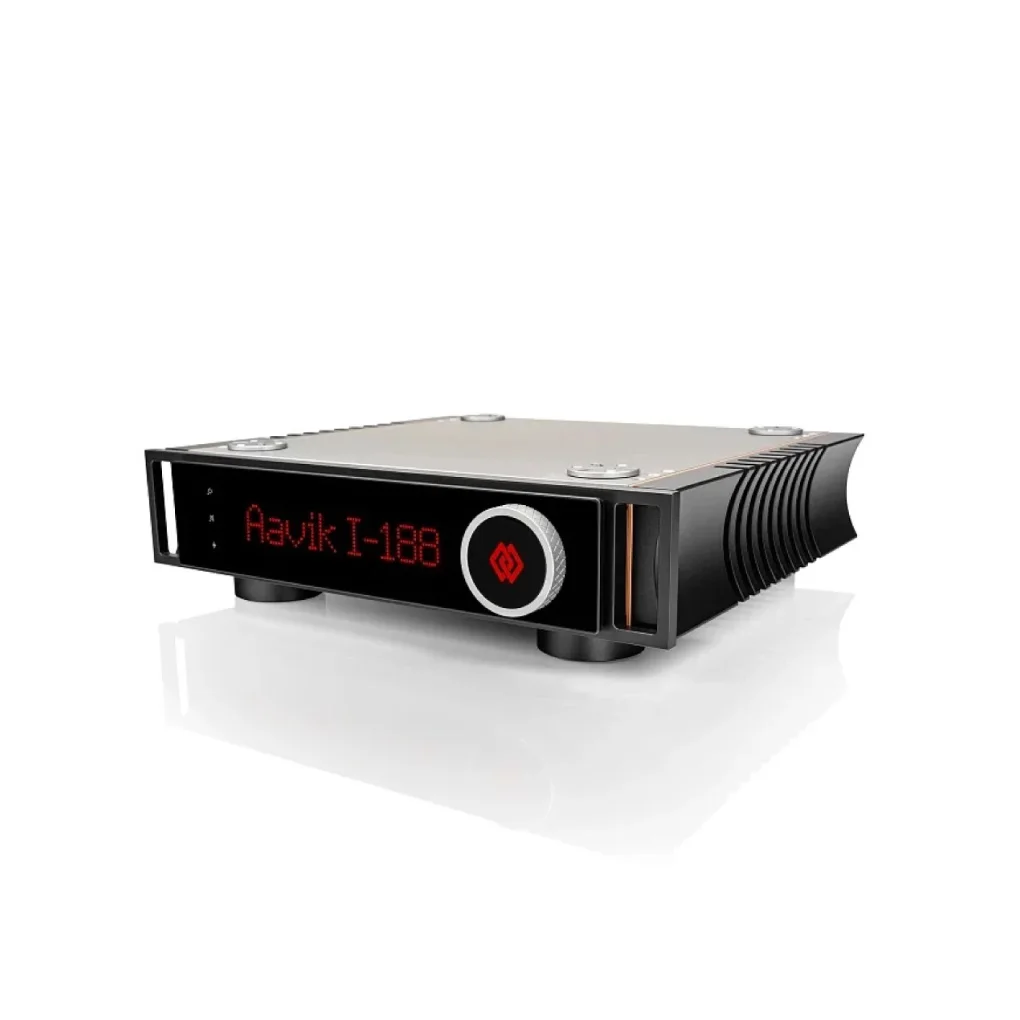

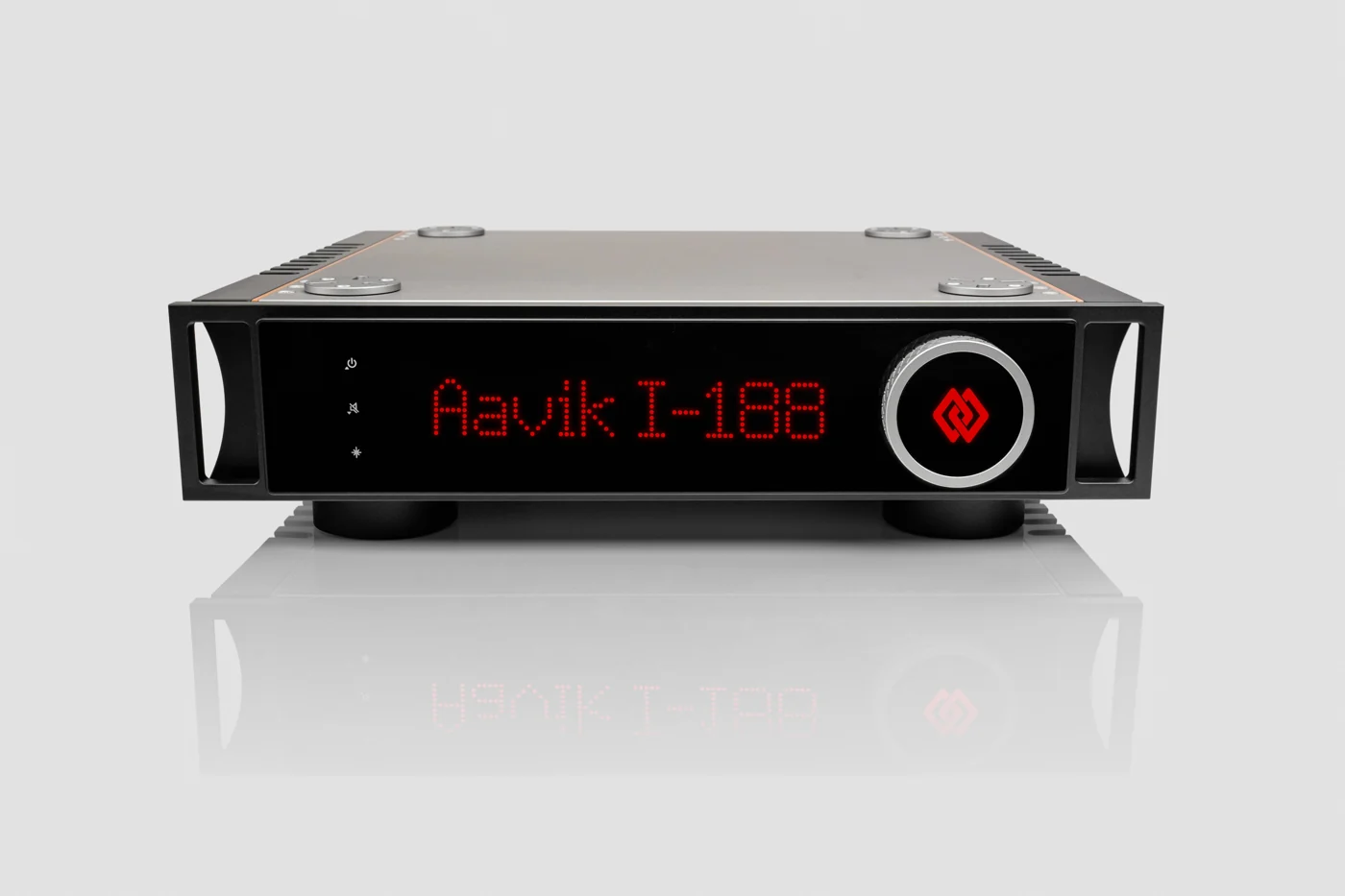

Aavik I-188
Audio Aavik I Series
I-188 is a Class D integrated amplifier with analogue line inputs, a preamplifier output and an analogue active crossover. The manufacturer specifies 300 W per channel into 8 ohms and 600 W into 4 ohms.
Technical Specifications
Manufacturer specifications
Line InputMaximum input 4.5V RMS (Line 1-4) Maximum input 6.5V RMS (Line 5) Input impedance 10kohm
Preamp Output1 pair of RCA outputs
Max Output7,5Vrms
Distortion LineSTAGE: 0,005% (THD at 1kHz, 1V input)
Output Impedance50 ohms
Volumecontrol76 1dB steps
Speaker Output2 x 300W 8 ohm 2 x 600W 4 ohm
Distortion (Thd+N)0,0028% (1W, 1kHz, 8 ohm)
Imd0,0008% (10W, 8 ohm)
Tim0,002% (10W, 8 ohm)
Main In1.33V RMS in for full power Input impedance 3.4kohm
Input Voltage100-240 V
Max Current10 A
Dimensions440 x 393,5 x 117,8mm (WxDxH)
Weight23,3kg
Confirm the exact model, interfaces and installation requirements against current product documentation before specification.
