E-electron

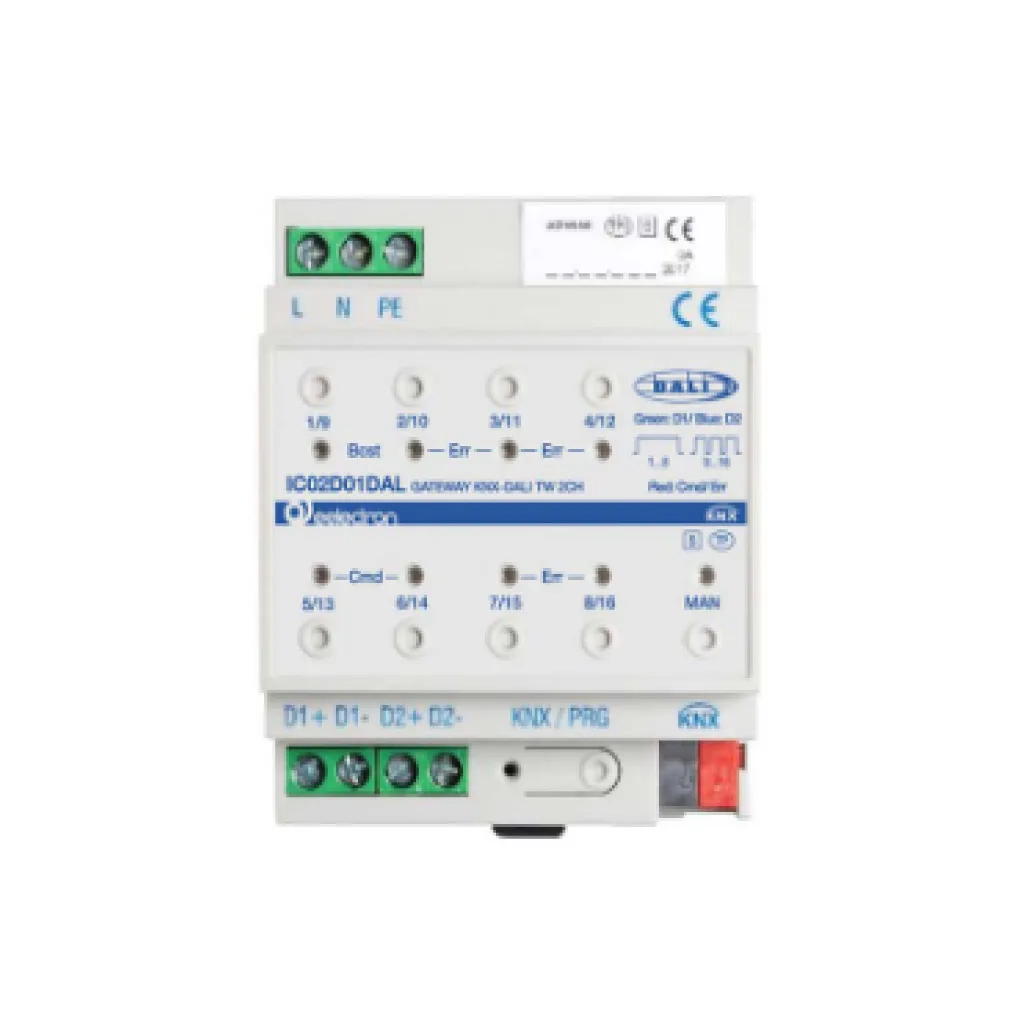

KNX DALI Gateway 2 channel
2 independent DALI channels, each for up to 64 devices (128 total). Built-in DALI power supply Supports DALI-2 and DT8 (tunable white, RGB, RGBW, etc.). Up to 16 groups per channel and scene control KNX bus supply via standard KNX TP (24 V SELV) with approx. Supply voltage: 110-240 V AC/DC, 50/60 Hz. Maximum power consumption: around 16 W.
Key Features
- 2 independent DALI channels, each for up to 64 devices (128 total).
- Built-in DALI power supply
- Up to 16 groups per channel and scene control
Specifications
Supports DALI-2 and DT8 (tunable white, RGB, RGBW, etc.).
KNX bus supply via standard KNX TP (24 V SELV) with approx.
Supply voltage110-240 V AC/DC, 50/60 Hz.
Maximum power consumptionaround 16 W.
Confirm the exact model, interfaces and installation requirements against current product documentation before specification.
