1 / 2
Russound
Russound MBX-PRE
Residential Audio Streaming Players
MBX-PRE is a Wi-Fi streaming audio player for connection to an external amplifier or compatible audio system. It provides line-level playback rather than powered loudspeaker outputs.
Technical Specifications
Manufacturer specifications
Frequency Response20Hz to 20KHz

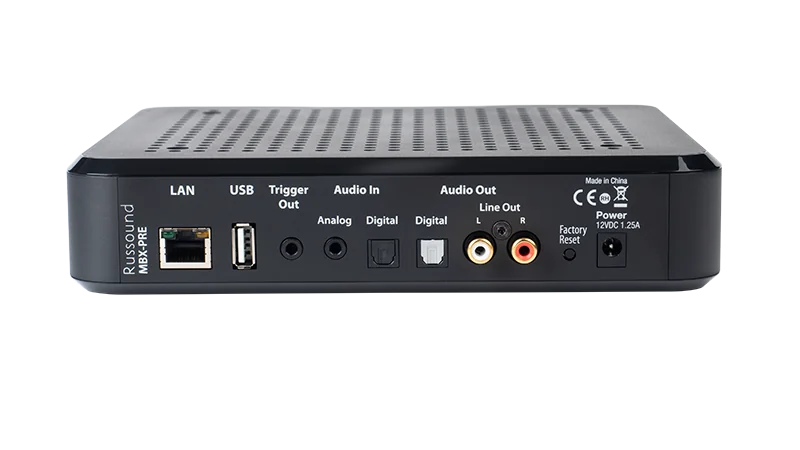

Audio OutputsAnalog – Stereo Audio RCA, Digital Optical
Line Audio Output2V rms
Audio Inputs3.5mm Analog Stereo Audio, Digital Optical, USB2.0 Media Playback
Communication PortsEthernet RJ45 10/100 BaseT
Wi-Fi802.11ac, dual band
Bluetooth Audio SupportYes
Trigger Output12vDC @100mA
Music File FormatsMP3 (CBR, VBR), WAV (8, 16-bit), OGG Vorbis, FLAC (8, 16-bit). AAC, AAC+ (supports up to 24-bit/192kHz)
Power Requirements12VDC, 1.25A
Product Dimensions8.25”W x 7”D x 1.75”H (21cm W x 17.8cm D x 4.5cm H)
Product Weight1 lb (0.45 kg)
Verify zone/source connections, supported network services and the supplied mains version. Optional accessories and third-party compatibility are model-specific, not brand-wide.
