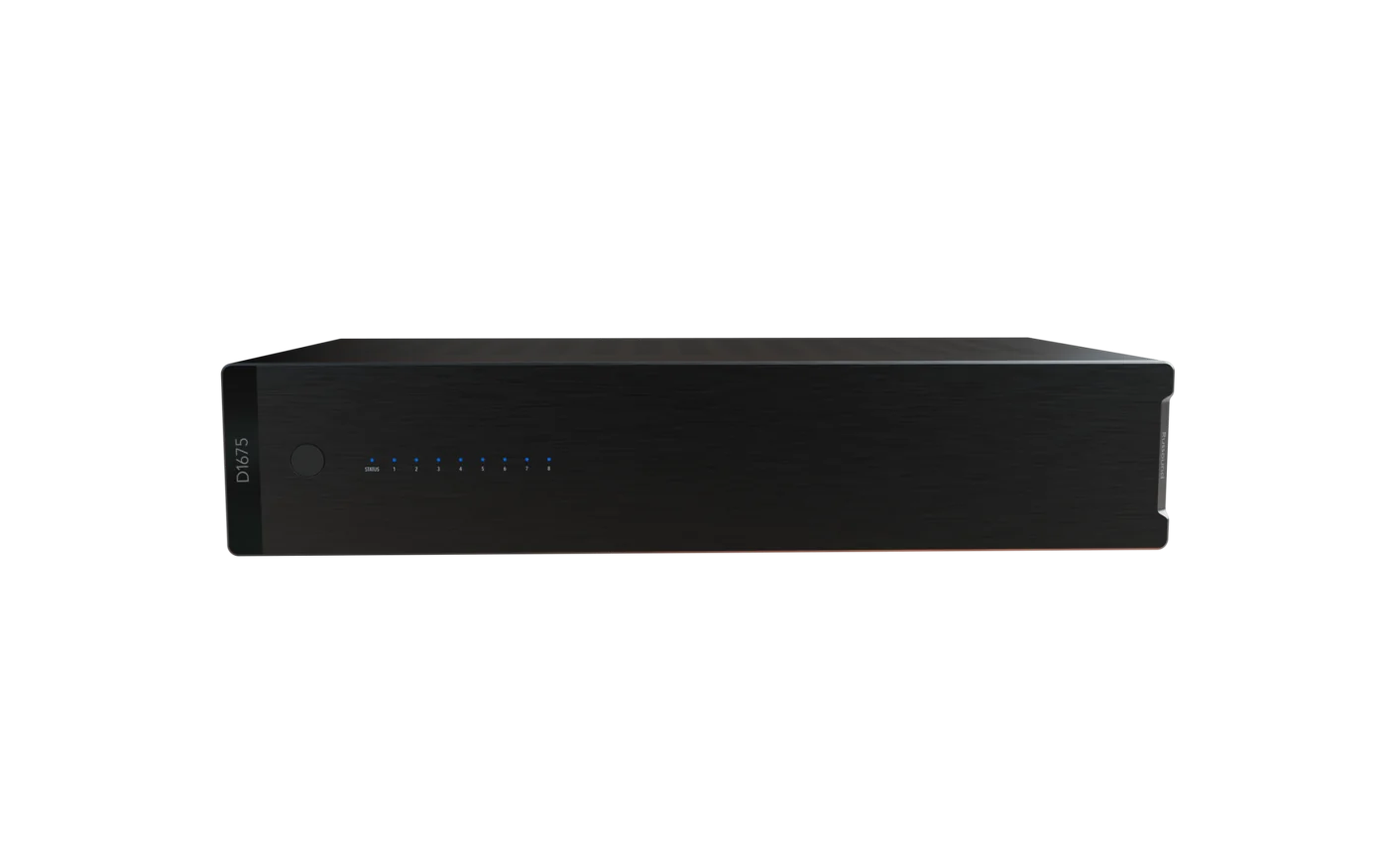

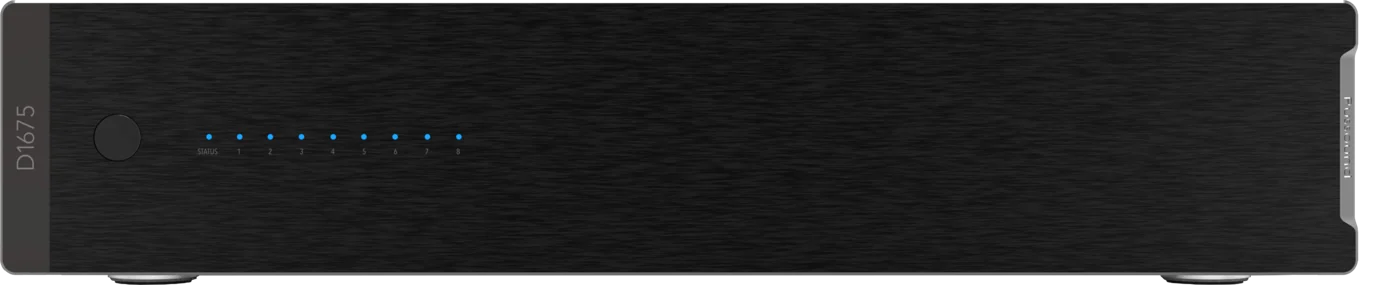

Russound D1675

D1675 is a 16-channel digital amplifier serving eight independent zones. The manufacturer’s power-output ratings specify load, test frequency and one-zone-driven conditions; confirm the required regional mains version.

Technical Specifications

Manufacturer specifications

Amplifier Channels16 channels 8 independent zones

BridgeYes

Frequency Response20Hz to 20kHz +/-3dB at 1W output into 4 or 8 Ohms

Fuse Rating10A, 250V FA

Input Impedance>22k ohms Line Input

Input Sensitivity620 mV for 90W @ 1kHz 4 Ohm One Zone 690 mV for 45W @ 1kHz 8 Ohm One Zone

Power Output75W /Channel, 1kHz One Zone Driven – 4 Ohm 37W /Channel, 1kHz, One Zone Driven – 8 Ohm 150W, 1kHz, One Zone Driven – 8 Ohm Bridged

Power Requirement(s)North American Model: 115-120VAC, 60Hz (1000W Max) International Model (D1675i): 220-240VAC, 50Hz (1000W Max)

Signal to Noise Ratio>90dB A-weighted

Speaker Connection(s)Detachable Screw-down, up to 12AWG

Trigger Input(s)12V, Global

Line InputSelectable: Bus A, Bus B, Zone

Verify zone/source connections, supported network services and the supplied mains version. Optional accessories and third-party compatibility are model-specific, not brand-wide.
