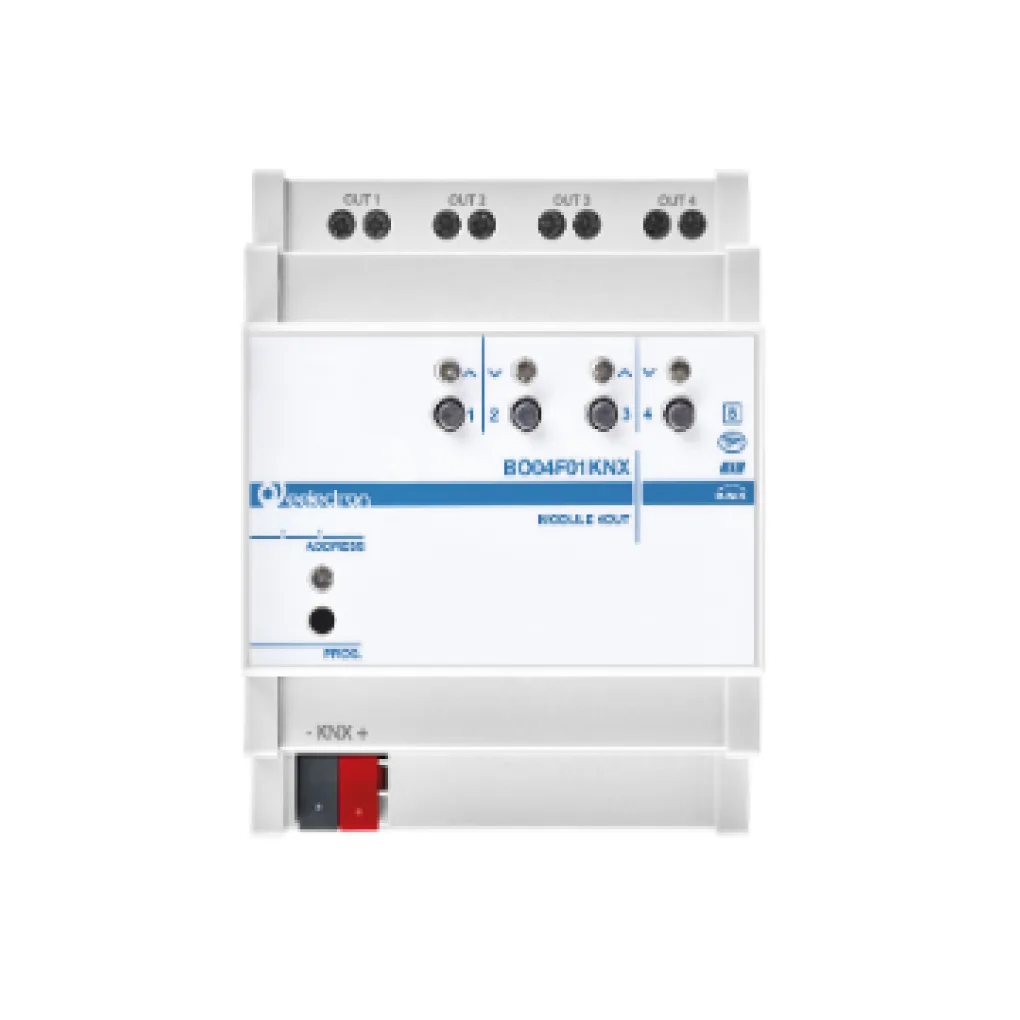

Universal DIN Module 4 OUTPUTS Plus
4 relay outputs (16 A) for lights, valves, or blinds DIN-rail mount, 4 DIN modules wide; KNX bus supply 21-32 V DC. Output rating: 16 A cos φ =1 at 230 V AC; 8 A cos φ =0.6; max peak current 165 A/20 ms Supports logic interlock (grouping relays) for more complex functions like fan-coil control. SD-card variant available for programming backup Application: smaller zones where full universal I/O isn’t needed, just output control of loads. Strength: compact, cost-effective for load control with ...
Key Features
- Supports logic interlock (grouping relays) for more complex functions like fan-coil control.
- SD-card variant available for programming backup
Specifications
4 relay outputs (16 A) for lights, valves, or blinds
DIN-rail mount, 4 DIN modules wide; KNX bus supply 21-32 V DC.
Output rating16 A cos φ =1 at 230 V AC; 8 A cos φ =0.6; max peak current 165 A/20 ms
Applicationsmaller zones where full universal I/O isn’t needed, just output control of loads.
Strengthcompact, cost-effective for load control with KNX integration.
Confirm the exact model, interfaces and installation requirements against current product documentation before specification.
