E-electron

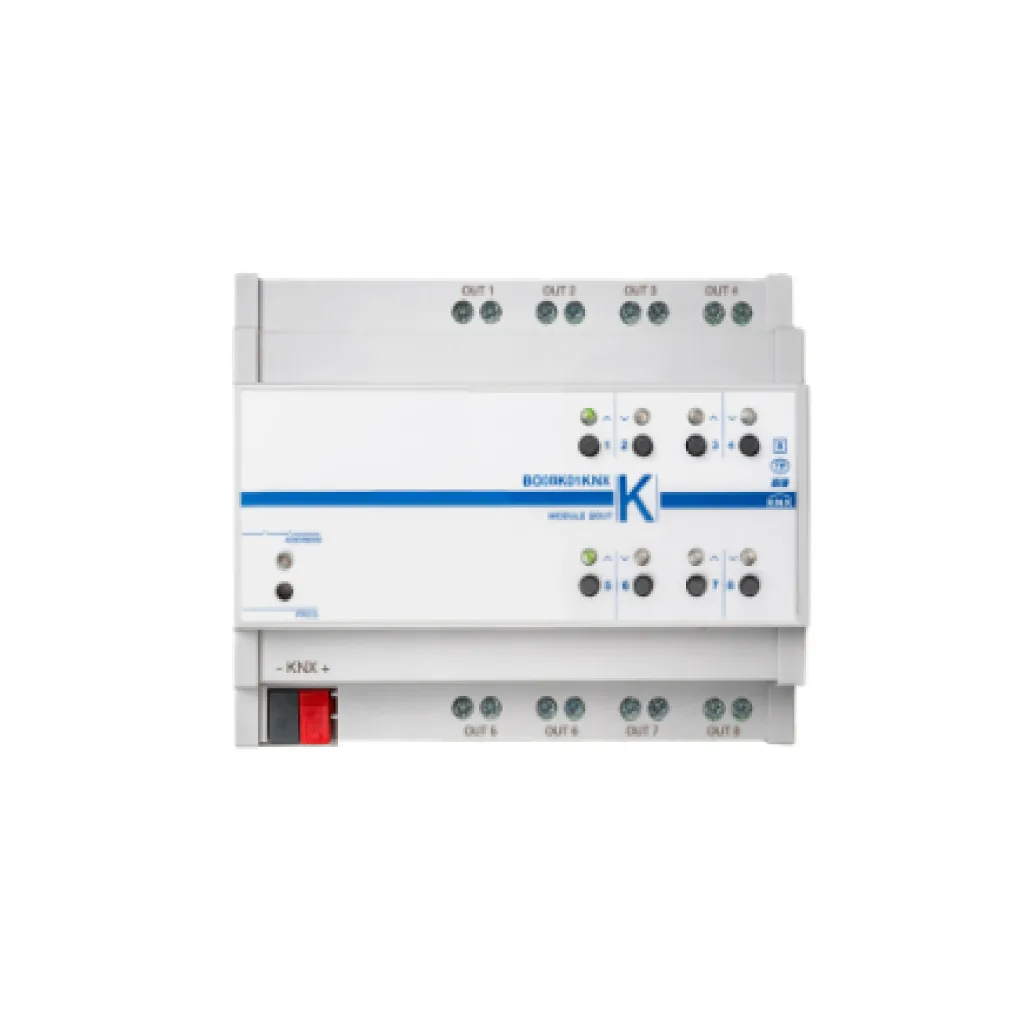

UNIVERSAL DIN MODULE 8 OUT
8 relay outputs, each rated 16 A at 230 V AC. Outputs configurable individually (for lights/loads) or in pairs (for blinds/shutters). Built‑in 8 logic blocks for simple/complex automation programs KNX bus powered (21‑32 V DC) via standard KNX interface.. DIN‑rail mountable module, 6 DIN modules wide Able to control generic loads, lighting, blinds or motors using relay pairs. Ideal for universal automation needs in KNX‑based building systems requiring up to 8 outputs
Key Features
- Outputs configurable individually (for lights/loads) or in pairs (for blinds/shutters).
- Built‑in 8 logic blocks for simple/complex automation programs
- DIN‑rail mountable module, 6 DIN modules wide
- Able to control generic loads, lighting, blinds or motors using relay pairs.
- Ideal for universal automation needs in KNX‑based building systems requiring up to 8 outputs
Specifications
8 relay outputs, each rated 16 A at 230 V AC.
KNX bus powered (21‑32 V DC) via standard KNX interface..
Confirm the exact model, interfaces and installation requirements against current product documentation before specification.
Product reference
