Nakymatone

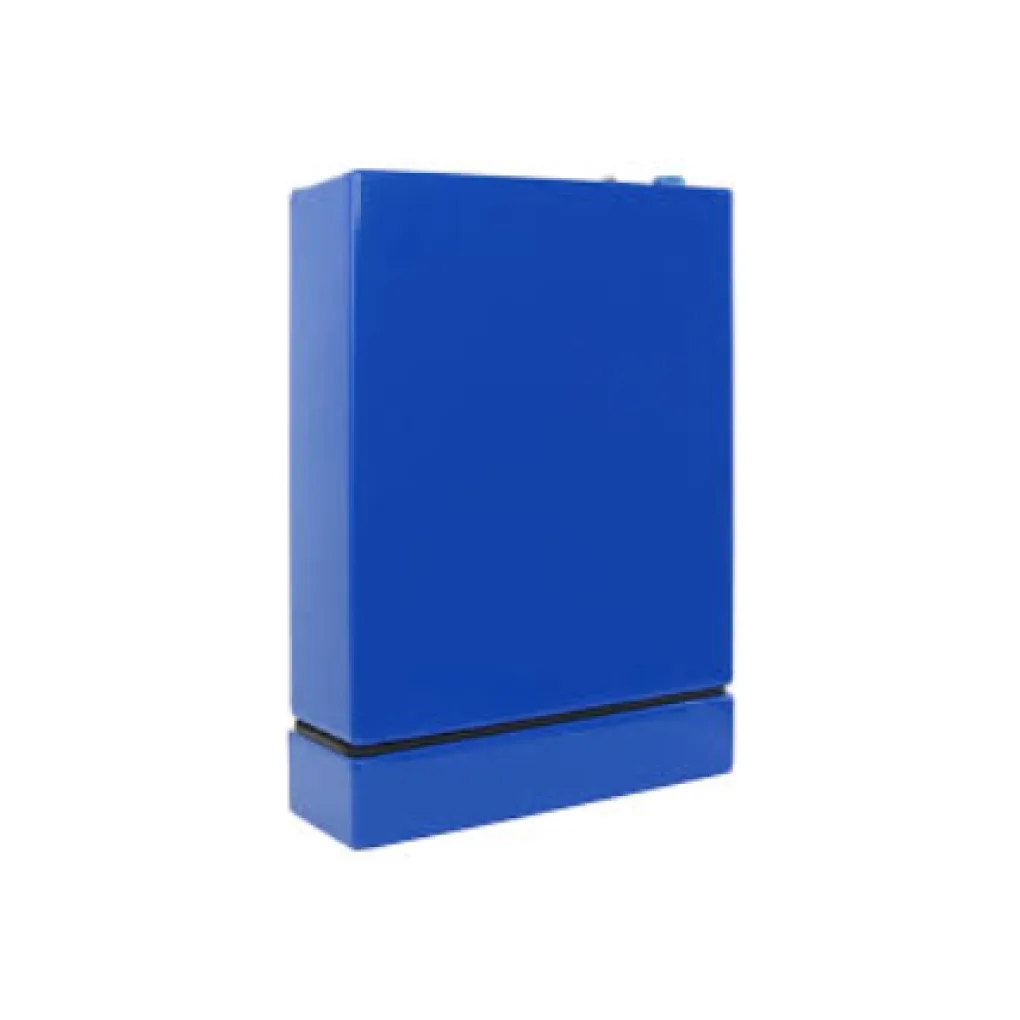

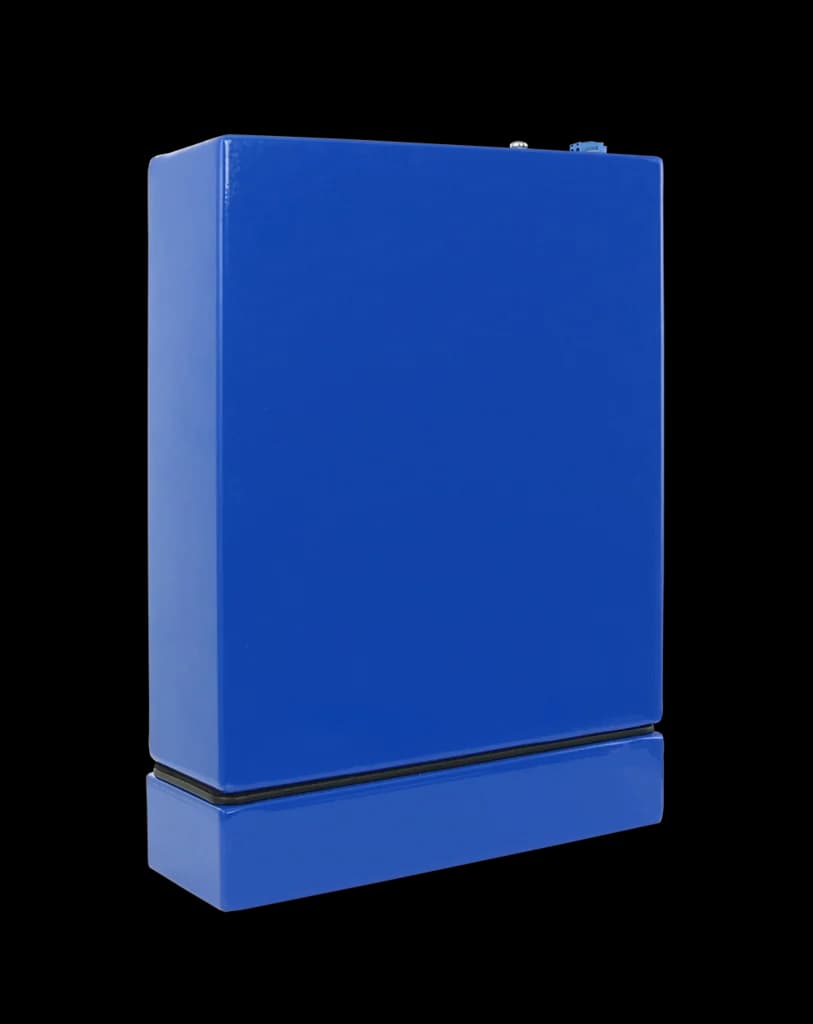

Nakymatone Base
Base is a concealed subwoofer that couples to the room through a slim port at a baseboard or cabinet kick plate. It is a ported system, not a plaster-over full-range panel. The manufacturer lists a 29–170 Hz frequency response.
Technical Specifications
Spec Sheet (PDF)Acoustic Performance
Frequency Response29 Hz – 170 Hz (±3 dB)
ApplicationHidden with Slim Port into Space
Port FinishPort via Baseboard or Cabinet Kick plate
Sensitivity89 dB @ 2.83 V / 1 m
Electrical
Driver3" × 10" Carbon Fibre High Performance Driver with Dual VC Neodymium Magnet
Nominal Impedance6 Ω
Power Handling150 W RMS (Peak 300 W)
Connection TypePhoenix Connector, accepts 24–12 AWG
Physical
ConstructionFully welded aluminum and rubber isolation
Operating Temperature-15°C to 50°C
Installation
Wall Cavity FitFits between studs in standard 2×4 wall cavity
Mounting OptionsVertical behind baseboard, horizontal in toe kick / under cabinetry
Confirm the exact model, regional version and connected equipment before specification. Published manufacturer information does not establish local stock or dealer authorisation.
Confirm enclosure clearance, mounting, finish or vent requirements from the exact installation document. Do not cut walls or cabinetry using another model’s dimensions.
