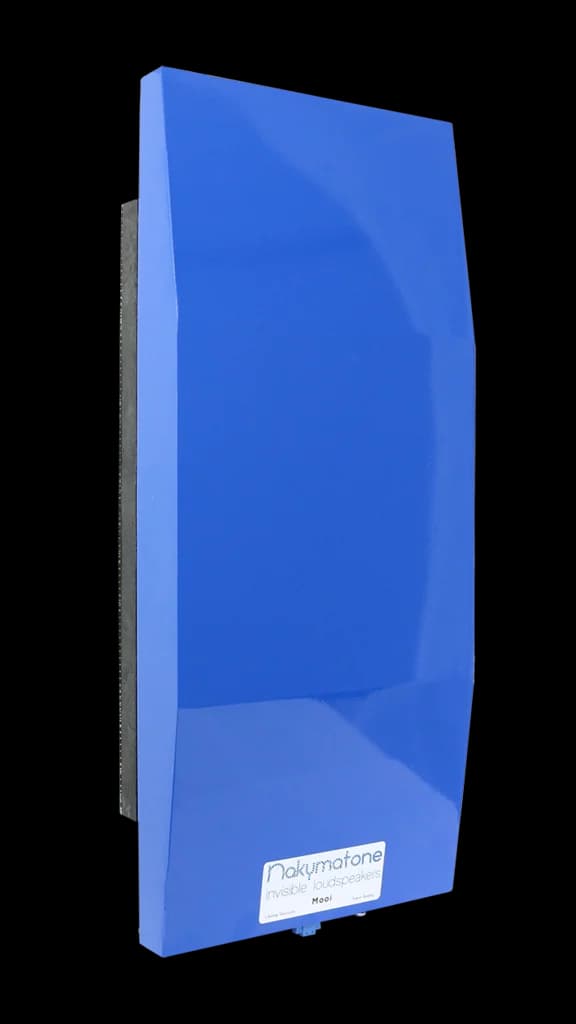

Nakymatone Mooi

Mooi is a Nakymatone invisible loudspeaker intended for concealed installation behind an approved finish. It produces sound; it is not an acoustic absorber, diffuser or bass trap. Follow model-specific finishing and amplification requirements.

Technical Specifications

Spec Sheet (PDF)

Acoustic Performance

Frequency Response75 Hz – 20 kHz (±3 dB)

Dispersion Angle180° × 180° (H × V)

Sensitivity86 dB @ 1 m / 1 W (with 2 mm plaster skim)

Maximum SPL105 dB @ 1 m / 80 W (with 2 mm plaster skim)

Electrical

Nominal Impedance8 Ω (minimum 8 Ω)

Power Handling80 W Maximum (overload protection built-in)

Filtering & ProtectionOverload protection and HPF built-in

Connection TypePhoenix, screw-in, accepts 24–12 AWG

Physical

Weight4,350 g

ConstructionAluminum honeycomb core, doped paper skin, composite acoustic panel

EnclosureAcoustically tuned aluminum enclosure (stitch welded, powder coated)

Operating Temperature-15°C to 50°C

Installation

Compatible AccessoriesPre Mount Kit

Confirm the exact model, regional version and connected equipment before specification. Published manufacturer information does not establish local stock or dealer authorisation.

Confirm the precise model drawing, mounting method, permitted finish material and thickness before cutting or finishing a surface. Do not infer installation dimensions from another model.
